1. Purpose
The purpose of this document is to provide forensic examiners recommendations for determining frame rate and frame interval timing as a part of forensic analysis of digital video.
2. Scope
This document addresses file formats encoded to the ISO/IEC 14496-12 Information technology — Coding of audiovisual objects — Part 12: ISO base media file format [1]. Additionally, this document specifically addresses videos encoded according to the H.264 specification [2]. The intended audience is forensic examiners with an advanced understanding of digital video file formats and encoding. This document specifically refers to the functionality of the metadata within files from recording devices, and not the reliability of the devices themselves.
This document is not intended to be used as a step-by-step guide for conducting a forensic examination or reaching a conclusion.
3. Limitations
Due to the wide variety of proprietary digital video recording devices and file formats, a singular approach to frame timing analysis cannot be applied to all files. Other multimedia file formats (e.g., .AVI, .MKV) and video coding standards (e.g., MPEG-1 Part 2, MPEG-2 Part 2) may require different approaches than those covered in this document.
Proprietary video files may store metadata with the video and audio data streams in a proprietary container and may not adhere to an encoding standard. Due to the unique nature of their file structure, proprietary video files may result in inaccurate frame rate reporting in many video playback/processing software programs. Additionally, this document is not intended for use on files that have been transcoded from their camera original file format by software outside the original recording device.
Note: It is recommended that examiners acquire both proprietary and open file formats from the source, if available. This allows for additional resources to be analyzed and may provide more information than a single source. When multiple file formats are available, the examiner should exercise caution in identifying the file format with the intended frame rate timing. It is also important to know the source of the video. Regardless of the acquired file format(s), frame timing analysis should not be conducted on transcoded or screen captured video files.
The concepts in this document may be used as part of investigations into determining object speed in recorded video. However, this document does not address the forensic use of photogrammetry, which is an integral part of any speed calculation. See SWGDE Best Practices for the Forensic Use of Photogrammetry for more information [3].
4. Introduction
The ISO/IEC 14496-12 Information technology — Coding of audiovisual objects — Part 12: ISO base media file format was originally derived from the QuickTime format specification and was standardized by ISO and is the foundation for MP4, 3GP, 3G2, and M4V multimedia file formats. Included in the standard is specific encoding language pertaining to the decoding and presentation timing of video frames; adherence to this encoding language should be evaluated by the examiner. Using this information, it is possible to calculate the specific time intervals between displayed frames.
Determining the frame timing within a video file has several applications and may be particularly helpful in determining the accuracy of an unknown variable during an event of interest. The importance of understanding frame timing has been shown in circumstances including calculating vehicle speed and evaluating the use of force where a misunderstanding of timing resulted in incorrect opinions from video files1,2.
5. Frame Timing in ISO Base Media File Formats
Timing information for digital video in ISO Base Media files is stored in multiple locations throughout the file. Core concepts that are central for understanding the time elements discussed below can be found in SWGDE Core Technical Concepts for Time-Based Analysis of Digital Video Files [4]. The following is a hierarchical example of the common locations (i.e., structures) within an ISO Base Media file where timing information is stored3:
-mvhd
— timescale
— duration
— rate
–tkhd
— duration
–mdhd
— timescale
— duration
–stbl
—–stts (time to sample)
—–ctts (composition time to sample)
- The Movie Header Box (mvhd), defines overall information which is media‐independent, and relevant to the entire multimedia presentation. Within this box, there are three time- related data elements.
- Timescale specifies the timescale for the entire presentation; this is the number of time units that pass in one For example, a time coordinate system that measures time in sixtieths (1/60) of a second has a time scale of 60.
- Duration declares the length of the presentation in the timescale of this mvhd This property is derived from the presentation’s tracks; the value of this field corresponds to the duration of the longest track in the presentation.
- Rate indicates the preferred rate to play the presentation (e.g., 1 is the equivalent of normal forward playback).
- The Track Header Box (tkhd) specifies the characteristics of a single track. The value of “duration” in this box indicates the duration of this track (in the timescale indicated in the mvhd). In general, the duration is the sum of the sample durations, converted into the timescale in the mvhd box.
- The Media Header Box (mdhd) declares overall information that is media‐independent, and relevant to the characteristics of the media in a track. This is media specific, which may differ from the timescale of the overall multimedia file. The value “duration” declares the duration of this media (in the scale of the timescale of this mdhd box).
- The Sample Table Box (stbl) contains all the time and data indexing of the media samples (e.g., frames, in the case of video) in a Time to sample boxes contain the composition times (CT) and decoding times (DT) of samples, of which there are two types.
- The Time To Sample (stts) box gives durations for all samples, expressed in the timescale of the mdhd box.
- The Composition Time to Sample table (ctts) provides the offset between decoding time and composition time, in the case that they differ.
6. Frame timing in H.264 video codings
When encapsulated within ISO Base Media Files, H.264 video is packaged according to a specification commonly known as “AVCC,” which is the name of the box within the ISO Base Media File that stores supplemental metadata required to re-present H.264 coded video samples. This box stores sequence parameter set (SPS) and picture parameter set (PPS) data that H.264 coding uses to establish the characteristics of the coded video samples. Within the SPS data, timing information can be present, but it is optional. When it is present, it can define the timescale of the media samples and whether or not there is a constant frame rate.4
When H.264 is found within an ISO Base Media file, the combination of video sample timing information and multimedia file timing information must be evaluated carefully to calculate the duration and timecode for each video frame. For example, MP4 files store frame-by-frame timing data in sample tables, and use header boxes to store overall frame rate and time bases.
These are all used to generate the calculations needed for playback devices to represent the frames of the embedded video samples as they were intended to be. The ability to determine frame timing is dependent on the ability to decode the container information. While many software programs and tools allow for the decoding and playback of video codings, they may not fully decode multimedia file metadata in the same manner or in a transparent way for the examiner to see.
For additional information on file formats and applications used for frame timing see SWGDE Technical Overview of Digital Video Files and SWGDE Technical Notes on FFmpeg [5,6].
7. Timing Determination Using Multimedia File Metadata
Utilizing the open-source application FFmpeg or other software tools, metadata from ISO Base Media File formats may be decoded to identify specific times at which individual frames are to be displayed. This timing information may account for skipped or dropped frames, variable frame rates, and potential encoding errors. The specific timecode information for each frame can be determined using a ffprobe Frame Information Report.
The Frame Information Report is generated within ffprobe utilizing the following command:
The report returns time and displays information from the video file as shown in Appendix A.
Consideration should be given to cases where proprietary systems are offering exports in non- proprietary formats, e.g., ISO base media file format. In these circumstances, it is also possible that the software developers who write custom code to create these ISO base media file format wrappers may create inaccurate calculations as they insert data into the internal ISO base media file format structures. Manual decoding of the file in a hex editor or the use of an external timing source as discussed in Section 8 may assist in this evaluation.
7.1 Presentation Frame Timing
When determining frame timing, timecode for each frame is reported in the packet presentation time (pkt_pts_time) column, decoded as a calculation of pkt_pts / the timescale of the media.
The packet presentation time, displayed in seconds, is the exact time that a particular frame is to be displayed. It should be noted that the initial start point of timecode within a video stream may not start at 0 seconds, rather it may be an arbitrary number. By looking at the difference between pkt_pts_time values for sequential frames, examiners can determine the reported elapsed time between frames. This is different from frame rate as it identifies the time between each frame rather than the amount of frames displayed in one second.5
The distinction between elapsed time between frames and frame rate is an important one. The delta of packet presentation times identifies the elapsed time between two specific frames, whereas frame rate identifies a total number of frames displayed in a second. Frame rate does not address the specific time between frames within that second.
7.2 Decode Frame Timing
Packet decode time (packet_decode_time) is also reported in the Frame Information Report. This is the specific time at which a frame is to be decoded by the playback software. It is important to note that the aforementioned ffprobe command is deriving information from the video file as stored in the frames data, prior to a file being actively decoded. For that reason, the packet decode timestamp (pkt_dts_time) and the packet presentation timestamp (pkt_pts_time) may be the same value.
Understanding packet presentation and packet decode times is an important distinction in video files that contain bi-directional frames (b-frames). However, the display order is not determined until after it is decoded (see SWGDE Technical Overview of Digital Video Files, Section 6.4.2) [5]. When b-frames are noted in the video file, an ffmpeg command to decode the file and determine the appropriate display order and timing of the b-frames first is more appropriate.
Packet decode time and packet presentation time can be generated after decoding a file utilizing the following command, which will generate a log file in the same directory as the input file and will include timing information:
Note that in the example below the packet decode time may be prior to the presentation time due to the b-frames’ reliance on frames presented before and after them. Also note that the values for duration, pts, and dts are expressed in seconds.
stream #0:
- keyframe=0
- duration=0.033
- dts=0.167 pts=0.167
- size=17424
stream #0:
- keyframe=0
- duration=0.033
- dts=0.200 pts=0.300
- size=36907
stream #0:
- keyframe=0
- duration=0.033
- dts=0.234 pts=0.234
- size=11742
A combination of the ffprobe and ffmpeg analysis of individual frame information can be used to verify frame timing outputs. If pts and dts values are found to be the same for each frame, the ffprobe report (described earlier in this section) may be preferred as it is easier to view the information in spreadsheet form as opposed to the created text log file.
8. Frame Timing Determination Using an External Timing Source
Regardless of the ability to decode ISO Base Media File metadata, a known timing source can be used to evaluate frame timing. While deriving frame time from file metadata may have a higher degree of precision6 than other methods, there are occurrences when that is not an option (e.g., inability to decode proprietary container information, transcoding within the recording device, or a stream copy that removes pertinent metadata). In the event of discrepancies between the documented frame data and an external source, additional testing may be necessary.
Consideration should be given to confirm timing information given to non-camera original files (i.e., files transcoded to .MP4 by a recording device), either through the use of an external timing source and/or manual decoding of a file in a hex editor.
Determining frame timing information for a multimedia file using an external timing source can be accomplished through recording a test video of a timing device and using the newly generated video frames to determine frame timing. When recording a test video, conditions of the recording device’s stressors (e.g., amount of motion, number of cameras connected) for that test video should be similar, or worse, than the evidence video. Those stressors may affect the ability of the recording device to process and encode data accurately and should be evaluated in worst case conditions. For example, if the evidence video has 16 cameras recording a store with shoppers walking around, the test video should have all 16 cameras recording with equal or greater motion in each camera.
There are a number of methods that can be used to display time for a test recording. It is important to use a timer where the examiner can accurately discern the correct time with adequate precision, minimally displaying .01 of a second. Considerations should be made to properly resolve any displayed timer with minimal motion blur. Techniques to accomplish this can include placing the timer as close as possible to the camera and using a larger sized display (e.g., tablet or computer displayed timer).
Using the known timing information generated by an external timing device, a margin of error can be calculated for frame timing. By using the external time display, the delta between subsequent frames can be calculated. Those intervals between frames can also be plotted and a minimum and maximum deviation calculated. This information can then be used to determine minimum and maximum timing between frames. It is important that the test video be of sufficient length and that calculations be made at various points within the file to ensure accuracy.
An LED light timing device may assist in determining time in individual frames. The use of an LED timer allows for precise determination of smaller increments of time through the use of an individual LED opposed to a digital display. If an LED box is employed to determine the time, the box should be oriented in both a vertical and horizontal fashion to account for any variance in cameras using a rolling shutter.
Prior to use, any timer should be calibrated according to methods recommended by NIST [7].

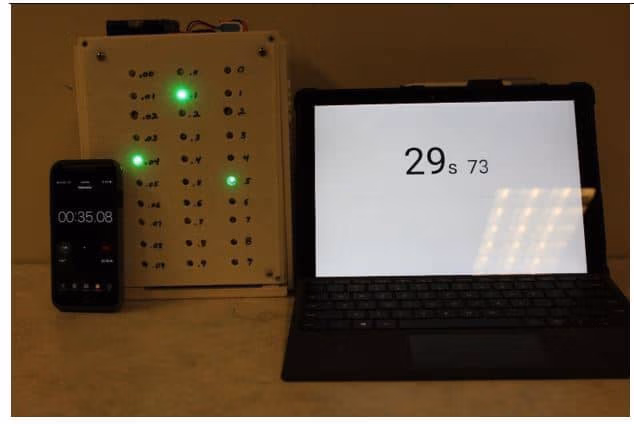

The image above shows an LED light timer as compared to a cell phone and an internet-based stopwatch. Multiple still images are captured and the time differences for each device in those images is calculated. The time differences between each frame should be consistent, as shown below:
| Image | LED Timer | LED Difference | Cell Phone | Cell Difference | Internet | Internet Difference |
|---|---|---|---|---|---|---|
|
1 |
3.24 |
|
33.18 |
|
27.83 |
|
|
2 |
5.14 |
1.9 |
35.08 |
1.9 |
29.73 |
1.9 |
|
3 |
7.76 |
2.62 |
37.7 |
2.62 |
32.35 |
2.62 |
|
4 |
9.77 |
2.01 |
39.71 |
2.01 |
34.36 |
2.01 |
|
5 |
12.82 |
3.05 |
42.76 |
3.05 |
37.41 |
3.05 |
9. Verification
Any findings should be verified as there are numerous variables involving recording manufacturers, codecs, and containers. This can be accomplished by verifying frame timing in the ffprobe frame information report by manual subtraction of packet presentation times, comparing file metadata with a timing source, or comparing the overall frame rate with specific frame timings to look at any potential variances. When comparing metadata to a visual timing source, multiple samples from a wide cross section of the video file with a sufficient number of frames should be analyzed. This should help ensure an accurate analysis of LED displayed time and metadata time.
10. Example
An examiner is provided with an MP4 video file that is native to the DVR from which it was acquired. The examiner is asked to determine the elapsed time between a vehicle’s brake lights activating and its impact with another vehicle. The examiner generates sequential still images from the file and identifies the frame where the brake lights are activated as well as the frame where the vehicles impact. A determination is then made that no b-frames are present in the video file. The examiner then generates a frame information report with ffprobe to determine the packet presentation time of those frames. Using the packet presentation times, frame timing was calculated for the examination. Prior to reporting the findings, the examiner returns to the scene with a LED light timer and records an exemplar video. A frame information report is then generated of the exemplar video file and the frame timing derived from the metadata is confirmed with the visual display of the light box.
11. References
[1] Information technology — Coding of audiovisual objects — Part 12: ISO base media file format, ISO/IEC 14496:2012.
[2] Infrastructure of audiovisual services – Coding of moving video, ITU-T Recommendation H.264.
[3] Scientific Working Group on Digital Evidence, “SWGDE Best Practices for the Forensic Use of Photogrammetry,” 2015. [Online]. https://www.swgde.org/documents
[4] Scientific Working Group on Digital Evidence, “SWGDE Core Technical Concepts for Time-Based Analysis of Digital Video Files,” 2019. [Online]. https://www.swgde.org/documents/draft-released-for-comment/
[5] Scientific Working Group on Digital Evidence, “SWGDE Technical Overview of Digital Video Files,” 2017. [Online]. https://www.swgde.org/documents
[6] Scientific Working Group on Digital Evidence, “SWGDE Technical Notes on FFmpeg,” 2018. [Online]. https://www.swgde.org/documents
[7] J. Gust, R. Graham, and M. Lombardi, “Stopwatch and Timer Calibrations,” NIST Special Publication 960-12, 2009. [Online]. https://ws680.nist.gov/publication/get_pdf.cfm?pub_id=50659
Appendix A –Frame Information Report
History
| Revision | Issue Date | Section | History |
|---|---|---|---|
|
1.0
DRAFT
|
2019-06-06 |
All |
Initial draft created and voted by SWGDE for release as a Draft for Public Comment. |
|
1.0
DRAFT
|
2019-07-16 |
All |
Formatting and technical edit performed for release as a Draft for Public Comment. |
|
1.0 |
2019-09-19 |
— |
No edits following public comment period. SWGDE voted to publish as an Approved document. |
|
1.0 |
2019-09-29 |
— |
Formatted for release as Approved version 1.0. |
|
1.1 |
2021-09-16 |
1,2,3,4,7,8 |
Public comments received. Document edited in response to those comments and noted in separate comments document. Clarified scope and limitations. Edits based in part on feedback from the public. |
|
1.1 |
2022-06-09 |
— |
No comments received, released as a final publication |
1 State of New Hampshire v. Witty, November 25, 2015, New Hampshire Superior Court, Southern District, Docket No. 226-2014 CR-00568
2 Leyritz v. State, 93 So. 3d 1156, 2012 Fla. App. LEXIS 12526, 37 Fla. L. Weekly D 1835, 2012 WL 3101493
3 See ISO/IEC 14496-12 Information technology — Coding of audiovisual objects — Part 12: ISO base media file format for more detailed information on the structural components of these file formats.
4 See International Telecommunication Union (ITU) Telecommunication Standardization Sector (ITU-T) Recommendation H.264, Infrastructure of audiovisual services, Annex E, for further information about this Video Usability Information (VUI).
5 Also reported in the Frame Information Report is packet duration time (pkt_duration_time). Packet duration time displays the total time that an individual frame is to be displayed (the value is expressed in the timescale of the media). Examiners should evaluate this time against packet presentation time before use in an examination. However, as these values are given at different times in the frame processing, differences between packet presentation times of sequential frames and packet duration time may occur and should be examined and documented.
6In this context, precision is the quality of the being exact (e.g., the smallest unit of measure of time that can be discerned). It should not be conflated with accuracy, which is how close the value is to the correct value (ground truth)
