Guidelines for Evidence Photography in a Controlled Setting

18-P-001-2.0

View Pdf

Disclaimer Regarding Use of SWGDE Documents

SWGDE documents are developed by a consensus process that involves the best efforts of relevant subject matter experts, organizations, and input from other stakeholders to publish standards, requirements, best practices, guidelines, technical notes, positions, and considerations in the discipline of digital and multimedia forensics and related fields. No warranty or other representation as to SWGDE work product is made or intended.

SWGDE requests notification by email before or contemporaneous to the introduction of this document, or any portion thereof, as a marked exhibit offered for or moved into evidence in such proceeding. The notification should include: 1) The formal name of the proceeding, including docket number or similar identifier; 2) the name and location of the body conducting the hearing or proceeding; and 3) the name, mailing address (if available) and contact information of the party offering or moving the document into evidence. Subsequent to the use of this document in the proceeding please notify SWGDE as to the outcome of the matter. Notifications should be submitted via the SWGDE Notice of Use/Redistribution Form or sent to secretary@swgde.org.

From time to time, SWGDE documents may be revised, updated, deprecated, or sunsetted. Readers are advised to verify on the SWGDE website (https://www.swgde.org) they are utilizing the current version of this document. Prior versions of SWGDE documents are archived and available on the SWGDE website.

Redistribution Policy

SWGDE grants permission for redistribution and use of all publicly posted documents created by SWGDE, provided that the following conditions are met:

  1. Redistribution of documents or parts of documents must retain this SWGDE cover page containing the Disclaimer Regarding Use.
  2. Neither the name of SWGDE nor the names of contributors may be used to endorse or promote products derived from its documents.
  3. Any reference or quote from a SWGDE document must include the version number (or creation date) of the document and also indicate if the document is in a draft status.

Requests for Modification

SWGDE encourages stakeholder participation in the preparation of documents. Suggestions for modifications are welcome and must be submitted via the SWGDE Request for Modification Form or forwarded to the Secretary in writing at secretary@swgde.org. The following information is required as a part of any suggested modification:

  1. Submitter’s name
  2. Affiliation (agency/organization)
  3. Address
  4. Telephone number and email address
  5. SWGDE Document title and version number
  6. Change from (note document section number)
  7. Change to (provide suggested text where appropriate; comments not including suggested text will not be considered)
  8. Basis for suggested modification

Intellectual Property

All images, tables, and figures in SWGDE documents are developed and owned by SWGDE, unless otherwise credited.

Unauthorized use of the SWGDE logo or document content, including images, tables, and figures, without written permission from SWGDE is a violation of our intellectual property rights.

Individuals may not misstate and/or over represent duties and responsibilities of SWGDE work. This includes claiming oneself as a contributing member without actively participating in SWGDE meetings; claiming oneself as an officer of SWGDE without serving as such; claiming sole authorship of a document; use the SWGDE logo on any material and/or curriculum vitae.

Any mention of specific products within SWGDE documents is for informational purposes only; it does not imply a recommendation or endorsement by SWGDE.

Table of Contents

1. Purpose

The purpose of this document is to provide guidelines on evidence photography in a controlled setting to document the condition before, during, and after the analysis of evidence items. The information in this document is not intended for comparative analysis.

2. Scope

Documentation images capture what an item looks like, or the features of an item that may be relevant. This may assist in understanding the visual attributes of an item. These images typically fall under notes or work products.

3. Equipment Recommendations

Please refer to SWGDE 16-P-002-1.0 Photographic Equipment and Infrastructure Recommendations prior to implementation of new equipment or procedures.

  • Digital camera
    • Point and Shoot
    • Mobile device with camera
    • Mirrorless interchangeable lens camera (MILC)
    • Digital Single-Lens Reflex (DSLR)
  • Lenses
  • Tripod or copy stand (optional)
  • Forensic scales of various sizes
  • Digital storage media
  • Light sources, e.g., studio lighting, flashlights, external flash

4. Considerations

4.1 Number and Type of Photos

Many items can be documented appropriately with one photograph. Some items will require multiple photographs to capture all the relevant details. This may require taking a systematic series of photographs that start with an overall photograph of the evidence item and progress to mid-range and close-up photos, as needed.

4.2 Camera Position

When the size or dimensions of an item is important, the position of the camera is critical to document the item accurately.

The camera’s sensor plane should be positioned parallel to the item being photographed. The use of a tripod or copy stand with integrated lighting may be necessary.

Figure 1. Demonstration of camera position.

4.3 Scaling

The use of forensic scales may not always be necessary; however, when used, they provide a way to document the relative, physical size of the item being photographed.

The scale should be appropriate for the evidence being photographed and placed on the same plane. If not, the item may appear larger or smaller than the true physical size.

If other features are present, e.g., blood stains, bullet defects, other scales can be placed on the item to illustrate their size.

The scale should be placed as close to the item as possible without obstructing details of the item If necessary, scales may be placed on the item, as long as the scale does not obscure any pertinent details. If the scale is to be placed on the item, photograph the item without a scale prior to placing a scale on the item for any additional photographs. Care should be taken not to alter any potential evidence, e.g., latent prints, DNA, trace evidence.

Scales should be sanitized between use on different items of evidence to avoid contamination.

Figure 2. Demonstration of using scales.

4.4 Labeling and Descriptors

The image should contain descriptors that allow the item to be readily identifiable. Descriptors should include case number, item number, date, initials of photographer, etc. Directly labeling an item may be an option, but the descriptors can also be placed on a placard within the frame of the photograph. Care should be taken not to alter any potential evidence, e.g., latent prints, DNA, trace evidence.

Figure 3. Demonstration of labeling.

4.5 Image Composition

The item being photographed should fill the frame. By filling the frame, it is maximizing the amount of detail captured by using as much of the camera sensor as possible. The item should be placed on a neutral background of contrasting color. The entire scale does not need to be captured; only enough of the scale needs to be shown to be able to determine the units of measurement being displayed.1

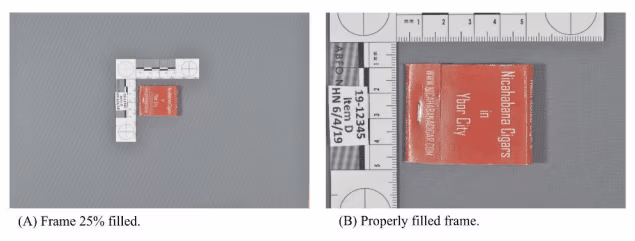

Figure 4. Demonstration of image composition.

4.6 Focus

Having a properly focused image is critical to ensure all of the necessary details are captured. The camera may focus automatically or manually depending on what focusing mode the camera is set to. Manual focus is often the most reliable way to ensure there is sharp focus from top to bottom and from side to side. The focus should be checked, either through the viewfinder, or the live projection on a screen (computer or camera) prior to capturing the image. Images should also be reviewed after capture to ensure sharp focus was achieved.

Figure 5. Demonstration of focus.

4.7 Exposure

Ensure the item is properly exposed to show all of the details of the object. This can be accomplished in several ways, including the use of a flash, external light sources, or adjusting camera settings. Utilizing a camera’s histogram may further assist in obtaining proper exposure.

Figure 6. Demonstration of exposure.

5. Workflow Example

  1. Ensure that the camera’s settings are appropriate for the needs of the documentation or request. This includes the camera’s time/date, white balance, image file format, image size, shutter speed, ISO, and aperture.
  2. Place the item on a flat surface with a neutral background.
  3. Place the camera’s sensor plane parallel to the item being photographed when the size or dimensions of an item are important.2
  4. Place appropriate measurement scale(s) on the same plane and next to the item.
  5. Place a label or descriptor that provides a unique identifier in the field of view for the item being photographed.
  6. Fill the camera’s frame with the item and scale, and ensure the item is in focus.
  7. Ensure the object is evenly illuminated to show detail in the object without distracting or harsh shadows, glare or reflections.
  8. Capture and evaluate the image to determine if it is of sufficient quality.
  9. Repeat steps as necessary, with appropriate adjustments.

6. Additional Resources

  • Scientific Working Group on Digital Evidence. Photographic Equipment and Infrastructure Recommendations. SWGDE 16-P-002-1.0. SWGDE, 2016, https://www.swgde.org/16-p-001/.

7. History

Revision Issue Date History
1.0 DRAFT
7/9/2018
Initial draft created.
1.0 DRAFT
9/20/2018
Draft updated and SWGDE voted to release as a Draft for Public Comment.
1.0 DRAFT
11/20/2018
Formatted for release as a Draft for Public Comment.
1.0
6/6/2019
No comments received during the public comment period. SWGDE voted to approve as a Final Approved Document.
1.0
7/16/2019
Formatted for release as a Final Approved Document.
2.0 DRAFT
5/14/2024
Major editorial revisions made for the document’s five-year review. Retired document from “SWGDE General Photography Guidelines for the Documentation of Evidence Items in the Laboratory” to “Guidelines for Evidence Photography in a Controlled Setting.” SWGDE voted to approve as a Draft for Public Comment. Formatted for release as a Draft for Public Comment.
2.0
2/21/2025
No comments received. SWGDE voted to approve as a Final Approved Document.
2.0
2/28/2025
Formatted for release as a Final Approved Document.

1Note: Leaving a little space around the edges of the item and the frame will allow for incidental cropping of the image that may occur at capture.

2 Note: There may be instances where a different perspective is important and does not allow for the camera to be parallel to the item being photographed.
